Combo tools

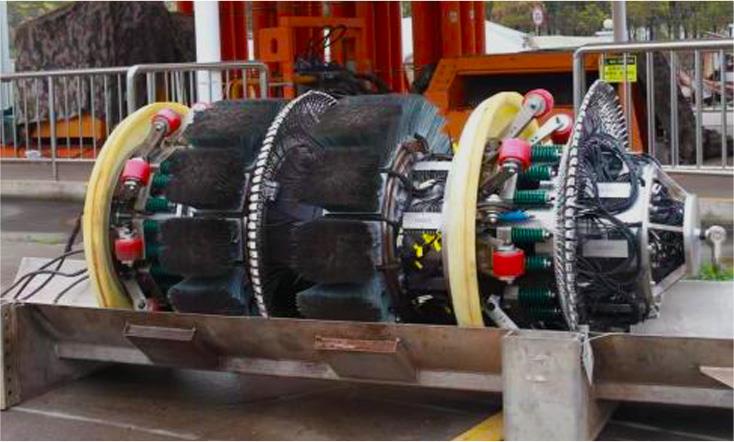

In-line inspection tools usually adopts independent inspection method, which is divided into geometry tool and MFL tool. For some pipelines in good condition, when the geometry tool is used to confirm that the pipeline condition does not exceed the limit deformation, the geometry and MFL inspection methods can be combined. The combo tools also can be equipped with IMU to map the pipeline centerline and realize multi-function integration to reduce the cost. The most important thing is that the in-line inspection combo tool can collect the data of corrosion defects at the position of the pipe deformation. At the same time, the inspection of defects and deformation is conducive to better evaluation of defects and risk prevention.

Key advantages

Good passing performance, high detection accuracy, accurate deformation location
Environmental adaptability (suitable for a variety of complex pipelines)
ATEX certified
Short delivery cycle meet customers' urgent needs

Specification

Pipeline Diameter	4" ～ 48"
Minimum Bend Radius	1.5D～3D
Temperature Range	-20 ～ 65℃
Speed Range	≤ 5m/s
Operation Pressure	≤ 12MPa
Pipeline Media	Natural gas, crude oil, refined oil, etc

Capabilities of combo tools

High resolution triaxial MFL
High resolution geometry inspection
Mapping（IMU）
Bend angle measurement
Speed control Unit
Wall thickness measurement

Deformation sizing accuracy of combo tools

Detection threshold	2%OD
Dents Accuracy	ID reduction<10%OD: ±0.5%OD
Dents Accuracy	ID reduction<10%OD: ±0.7%OD
Ovality Accuracy	ID reduction<5%OD: ±0.5%OD
	ID reduction between5%～10%OD: ±1.0%OD
	ID reduction>10%OD: ±1.4%OD

Ovality(%)=(Max diameter-Min diameter)/DN

MFL sizing accuracy of combo tools

Performance Specifications	General （4A×4A）	Pitting (2A×2A)	Axial grooving (4A×2A)	Circumferential grooving (2A×4A)
Depth at POD= 90%	5%WT	8%WT	5%WT	5%WT
Depth sizing accuracy At 90% certainty	±10%WT	±10%WT	±10%WT	±10%WT
Length sizing accuracy at 90% certainty	±15mm	±15mm	±15mm	±15mm
Width sizing accuracy at 90% certainty	±10mm	±10mm	±10mm	±10mm
Min detectable pitting diameter	2mm
Min sizeable pitting diameter	5mm
Axial location accuracy at 90% certainty	Relative to closest girth weld<±0.1m Relative to reference marker<±1%
Circumferential location accuracy at 90%certainty	±5°

WT=wall thickness. If WT>10mm, A=WT; If WT<10m, A=10mm.
