Geometry inspection tools

Mechanical deformations can also cause growth of corrosion and corroded dents can be a serious threat to pipeline integrity. Change in diameter or Bore of pipeline circular shape can affect the flow of product and cause consumption of power required for product transportation.

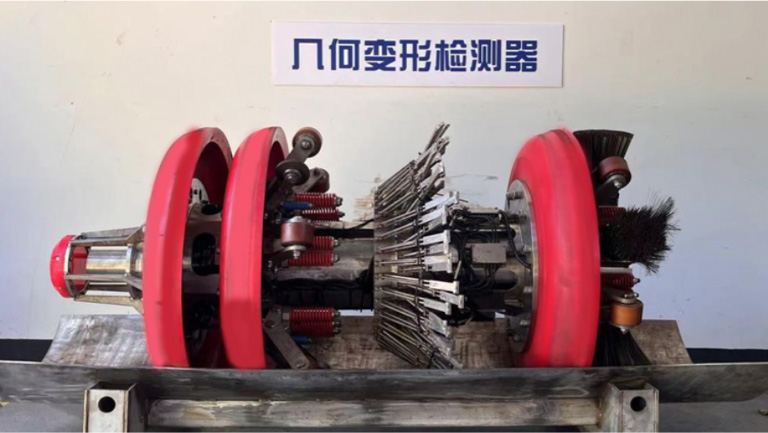

Shenglong geometry tool is a multi-purpose tool, which is suitable for the evaluation of pipeline characteristics and status. Geometry tools can check that there are no restrictions in the pipeline prior to running heavier and more sophisticated ILI tools. The types of features that can be inspected include but are not limited to: Dent, Ovality, Wrinkle, Buckle, Girth weld, Bend , Tee, Valve, Offtake.

Key advantages

Good passing performance, high detection accuracy, accurate deformation location
Environmental adaptability (suitable for a variety of complex pipelines)
ATEX certified
Short delivery cycle meet customers' urgent needs

Specification

Pipeline Diameter	4" ～ 48"
Minimum Bend Radius	1.5D～3D
Temperature Range	-20 ～ 65℃
Speed Range	≤ 5m/s
Operation Pressure	≤ 12MPa
Pipeline Media	Natural gas, crude oil, refined oil, etc

Application

Baseline inspection
Adapt to the complex conditions of new pipelines
Adapt to high speed inspection
Passing verification of inspected pipeline

Detection and sizing capabilities

Detection threshold	0.5% OD
Dents Accuracy	ID reduction<10%OD: ±0.5%OD
Dents Accuracy	ID reduction<10%OD: ±0.7%OD
Ovality Accuracy	ID reduction<5%OD: ±0.5%OD
	ID reduction between5%～10%OD: ±1.0%OD
	ID reduction>10%OD: ±1.4%OD

Ovality(%)=(Max diameter-Min diameter)/DN

Location accuracy

Circumferential location accuracy	±10°
Probability of	85%
Confidence level	90%
Axial location accuracy	1‰(1km revised), relative to closest girth weld±0.1m
